Electrolux Washing Machine Main Control Board 5304519503

Cheap Price Home Appliance Parts Electrolux Washer Circuit Control Board 5304519503. Compatible with EFLS627UIW0 EFLS627UTT0 models and more. Order Now!

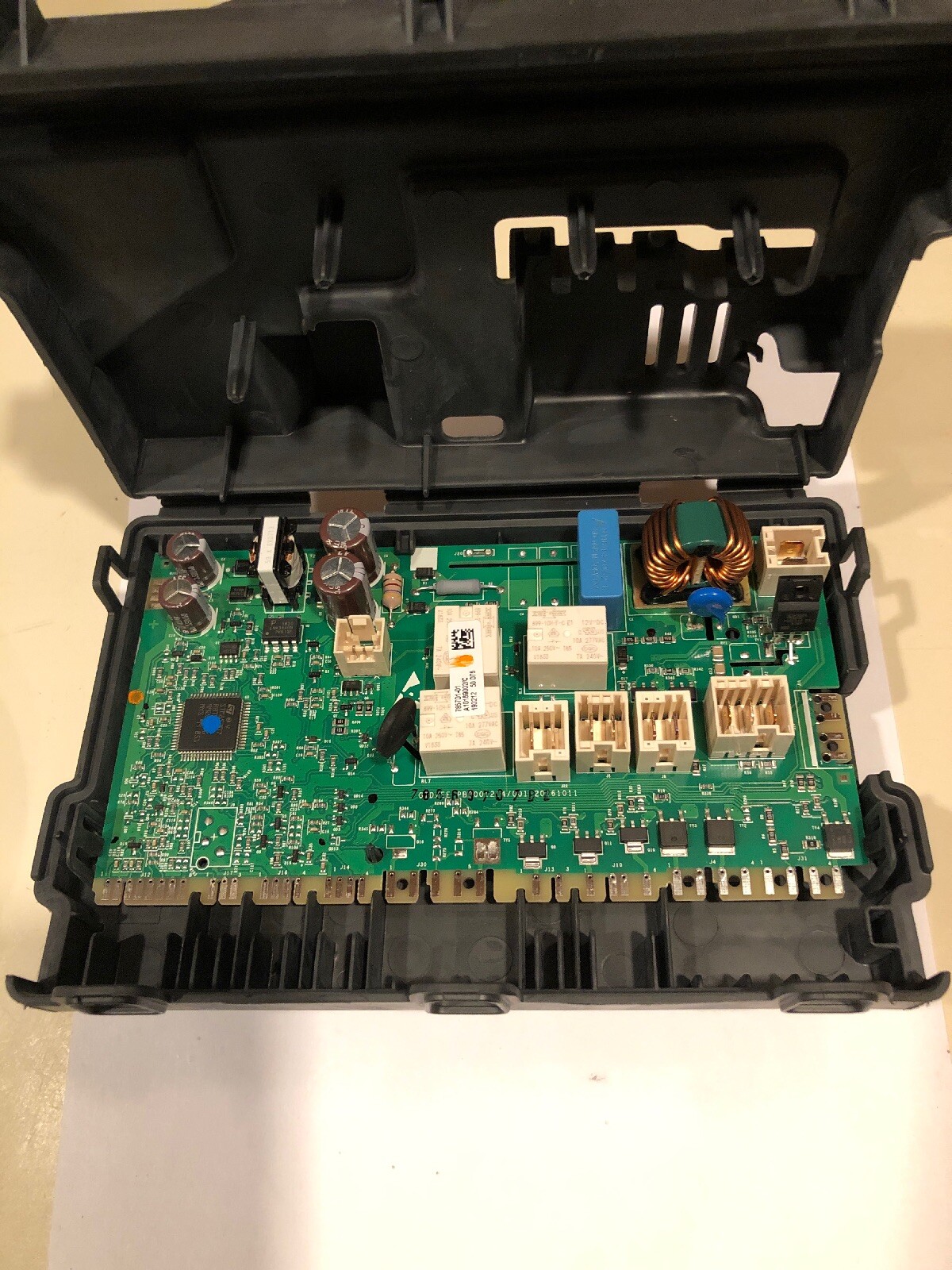

Electrolux Washer Control Board Replacement Parts 5304519503

Electrolux Washer Main Control Board Repair Kit 5304519503

  • Product: 5304519503 Electrolux Main Control Board Genuine Frigidaire 5304515235 New
  • Type: Electrolux Washer Electronic Control Board
  • Item Location: Worcester, Massachusetts, United States
  • Ship To: The United States and many other countries
  • Policy: 30-day returns. Buyer pays for return shipping
  • Condition: New
  • Price: US $66.66
  • View more part details and Compare the Best Prices Below.

Fits Electrolux Washer Models:

Find the correct This Washing Machine Main Control Board Repair Parts 5304519503 fits the following Electrolux models. Use Ctrl-F to find your specific model as indicated.

EFLS627UIW0 EFLS627UTT0

Functions of Electrolux Washer Control Board 5304519503

The Electrolux Washing Machine Main Control Board, model number 5304519503, is a crucial component that controls and manages various functions of the washing machine. Some of the functions it performs include:

  1. Power Control: The main control board manages the power supply to the washing machine and ensures proper voltage distribution.
  2. Cycle Selection: It allows users to select different wash cycles such as normal, delicate, heavy-duty, quick wash, etc.
  3. Temperature Control: The control board regulates the water temperature during different wash cycles, including hot, warm, and cold water settings.
  4. Water Level Control: It monitors and controls the water level inside the washing machine, ensuring the appropriate amount of water is used for each cycle.
  5. Spin Speed Control: The control board manages the spin speed of the washing machine drum during the spin cycle.
  6. Timer Control: It controls the duration of each wash cycle, including wash time, rinse time, and spin time.
  7. Sensor Monitoring: The main control board may include sensors that monitor various parameters such as water level, temperature, motor speed, and load balance to ensure optimal performance and safety.
  8. Error Detection and Display: The control board detects any malfunctions or errors in the washing machine’s operation and displays error codes or messages on the control panel for troubleshooting.
  9. Start/Stop Control: It allows users to start and stop the washing machine as needed, and it ensures proper shutdown when the cycle is complete.
  10. User Interface: The main control board provides the interface for users to interact with the washing machine, typically through a control panel or buttons.

These are some of the primary functions performed by the Electrolux Washing Machine Main Control Board 5304519503. It plays a vital role in the overall operation and performance of the washing machine.

Common Symptoms of Electrolux Control Board 5304519503

The Electrolux washing machine main control board, also known as the electronic control board or the PCB (Printed Circuit Board), is a critical component that controls the various functions and operations of the washing machine.

If there are issues with the main control board, it can lead to several symptoms. Here are some common symptoms of a faulty main control board in an Electrolux washing machine (model 5304519503):

  1. No power: The washing machine may not power on at all when the control board is faulty. This can be indicated by a complete lack of response when you press the power button.
  2. Display issues: The control board may cause problems with the display panel, such as flickering, no display, or incorrect information being shown.
  3. Cycle interruption: The washing machine may start a cycle but stop abruptly or fail to progress through the different stages of the wash cycle. This can happen due to a malfunctioning control board that is unable to properly send signals to the machine’s components.
  4. Error codes: The control board may display error codes on the washing machine’s digital display. These codes can indicate specific problems with the control board or other components.
  5. Unresponsive buttons: The control board may not respond when you press the buttons to select a cycle, change settings, or start/stop the machine.
  6. Random operation or erratic behavior: The washing machine may exhibit unpredictable behavior, such as randomly starting or stopping, changing settings on its own, or running through cycles too quickly or too slowly.
  7. Water level problems: A faulty control board may cause issues with water level sensing. The machine may not fill with the correct amount of water, leading to problems with the wash quality.
  8. Noisy operation: The control board can affect the functioning of the motor, pump, or other components, leading to unusual noises during operation.

If you suspect that the main control board in your Electrolux washing machine is faulty, it is recommended to consult a professional technician or contact Electrolux customer support for further assistance.

Troubleshooting Guide

Here is a list of general troubleshooting guide that you can follow to troubleshoot issues with the main control board of an Electrolux washing machine.

Keep in mind that this guide is meant to provide a general overview, and the steps may vary depending on your specific model. Here’s a step-by-step troubleshooting guide:

  1. Power off and unplug the washing machine: Before starting any troubleshooting steps, ensure that the washing machine is turned off and unplugged to avoid any potential electrical hazards.
  2. Check for error codes: Some Electrolux washing machines display error codes on the control panel. Look for any error codes or warning lights that may be indicating a specific problem. Refer to the user manual or online resources to understand the meaning of the error codes specific to your model.
  3. Inspect the control board for visible damage: Carefully examine the main control board for any signs of physical damage such as burnt or discolored components, loose connections, or damaged wires. If you notice any obvious damage, it may indicate a faulty control board that needs to be replaced.
  4. Test the power supply: Make sure that the washing machine is receiving power by checking the power outlet and verifying that it is working correctly. You can use a multimeter to test the voltage at the outlet or try plugging another device into the same outlet to confirm if the power supply is functioning properly.
  5. Reset the control board: Sometimes, issues can be resolved by resetting the control board. Locate the main power switch or circuit breaker for the washing machine and turn it off. Wait for a few minutes, then turn it back on. This reset procedure can help clear any temporary glitches in the control board’s software.
  6. Check for loose connections: Inspect the wiring harnesses and connectors connected to the control board. Ensure that they are securely plugged in and there are no loose or disconnected wires. Reconnect any loose wires if found.
  7. Perform a diagnostic test: Many Electrolux washing machines have a built-in diagnostic mode that can help identify specific issues. Consult the user manual or online resources to find out how to activate the diagnostic mode for your particular model. Follow the instructions provided to run the diagnostic test and observe any error codes or test results displayed.
  8. Contact Electrolux customer support: If you’ve gone through the above steps and haven’t been able to resolve the issue, it may be necessary to seek professional assistance. Contact Electrolux customer support or a qualified appliance repair technician to further diagnose and address the problem with the main control board.

Remember, this guide is a general overview and may not cover all potential issues or specific steps for your model. Always refer to the user manual or consult with a professional technician for accurate troubleshooting instructions for your specific Electrolux washing machine model.

Compare Lowest Prices

Get more Oven Door Handle 5304519503 product details, item conditions (new brand, used, or refurbished), delivery information, return & refund policy, Check Price on eBay or Compare Best Prices HERE!

Electrolux Washer Control Board Replacement Parts 5304519503

More Information

Search more details: Besides the Electrolux Washer Main Control Board Repair Kit 5304519503, if you need any help with finding the right part for your appliance model or have any information, please write your message in the comment section below. We will check the part and get back to you very soon. Fix it and save your money!
